Stonex / Total Stations

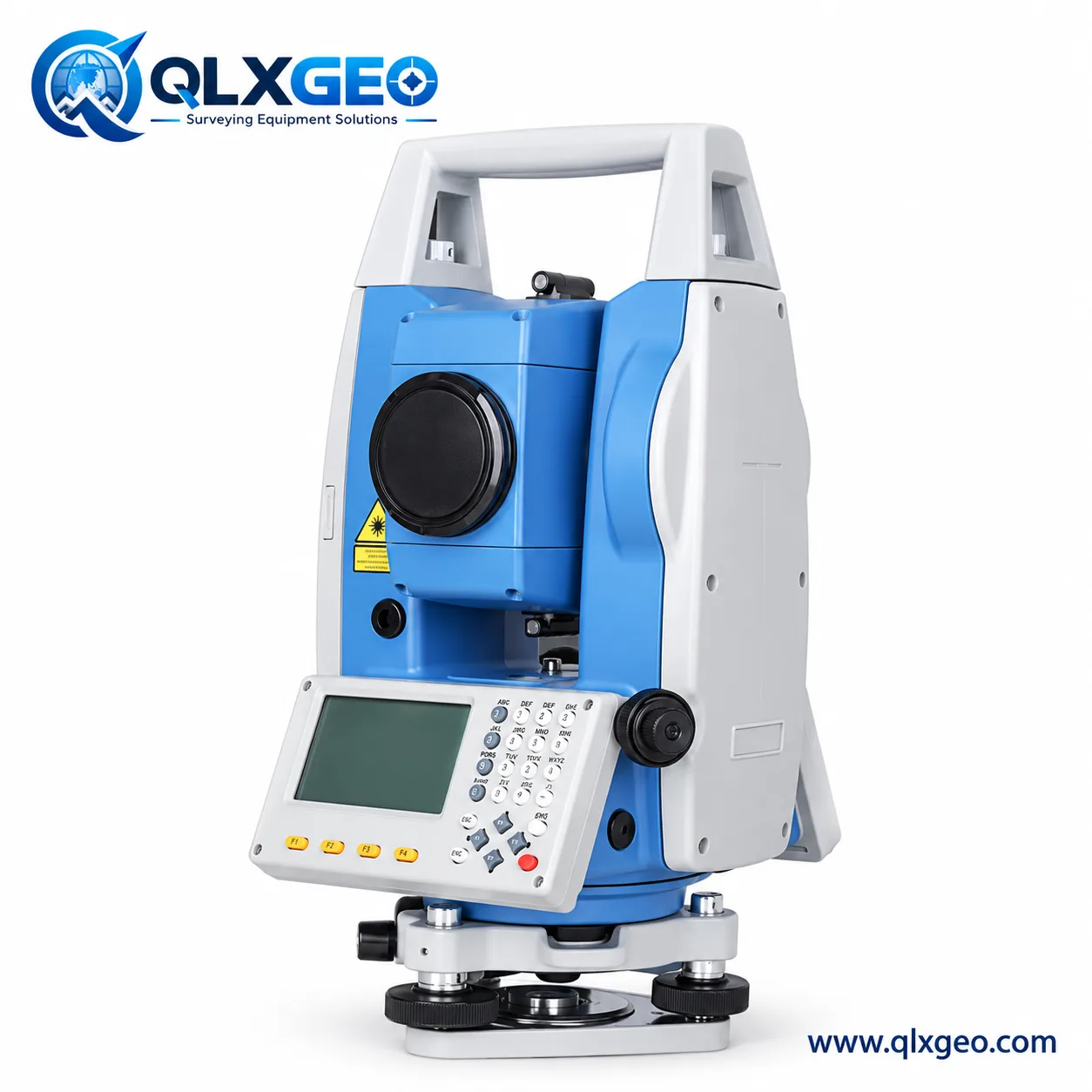

StonexR2

Availability and configuration on request

Ask about this product

All brands: Stonex
Model: R2
Category: Total Stations

Product specifications, images and availability are confirmed when you request a quotation.

Manufacturer specifications

Angle accuracy: R2-2: 2"; R2-5: 5"; R2-7: 7"
Prism range: R2-2: 2,400 m; R2-5/R2-7: 2,000 m (single prism, fair weather)
Reflectorless range: Up to 200 m on a white target in shade/overcast; 160 m in strong sunlight
Prism distance accuracy: 2 mm + 2 ppm (fine mode)
Reflectorless distance accuracy: 5 mm + 2 ppm (fine mode)
Telescope magnification: 30x
Display: Dual backlit LCD
Weight: 6.0 kg
Operating time: 6 V rechargeable Ni-H; 8 h

Manufacturer source: Stonex R2 user manual
